Data sheet
| Swing over bed | 180 mm |
| Distance between center | 350 mm |
| Hole through spindle | 20 mm |
| Spindle taper | MT3 |
| Tailstock taper | MT2 |
| Cross slide travel | 65 mm |
| Compound travel | 55 mm |
| Metric range of thread | 0.2 - 2.0 mm (10 thread pitch ) |
| Motor output power | 550 W |
| Spindle speed | Low : 100 ~ 1100 / High : 100 ~ 2500 RPM |
| Over all dimension ( L x W x H ) | 800 x 300 x 300 mm |
| Packing size ( L x W x H ) | 870 x 340 x 380 mm |
| Weight ( Net / Gross ) | 50 / 55 kg |
More info

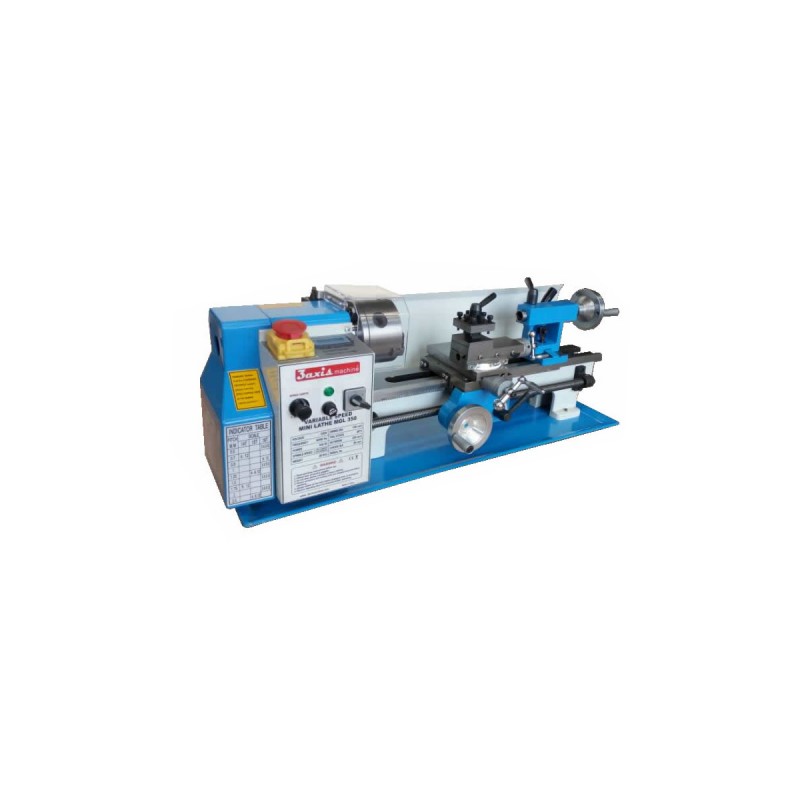

Metal gear ,100 mm 3 jaw chuck, aluminium hand wheel , Powered by a 550 W motor, this lathe also features: variable speeds (low speed 100-1100/ high speed 100-2500 RPM), metric reading dials, turret tool post, chip tray & splash guard.for more security it's support with limit switch , protected cover switch and emergency switch .
Mini-Lathe for Home Machinists presents a complete course on using and improving the new generation of budget lathes. It's a perfect choice for beginners as well as for those who are experienced with the lathe, but have never tried the mini-lathe. The skills and information that the reader will pick up from this book can be applied again and again to future projects on the machine.
|
Standard Attachment |
Special Ability |
|
|
